SPECIFICATIONS

Brand Name: Foval

Certification: CE

Conversion Efficiency: 0.9

High-concerned chemical: None

Input Voltage: DC 24V

Output Frequency: 50Hz

Output Voltage: AC 220V±10%

Rated Power: 4000W

Socket Type: Europe

Voltage: Below 50V AC / 75V DC

Specifications

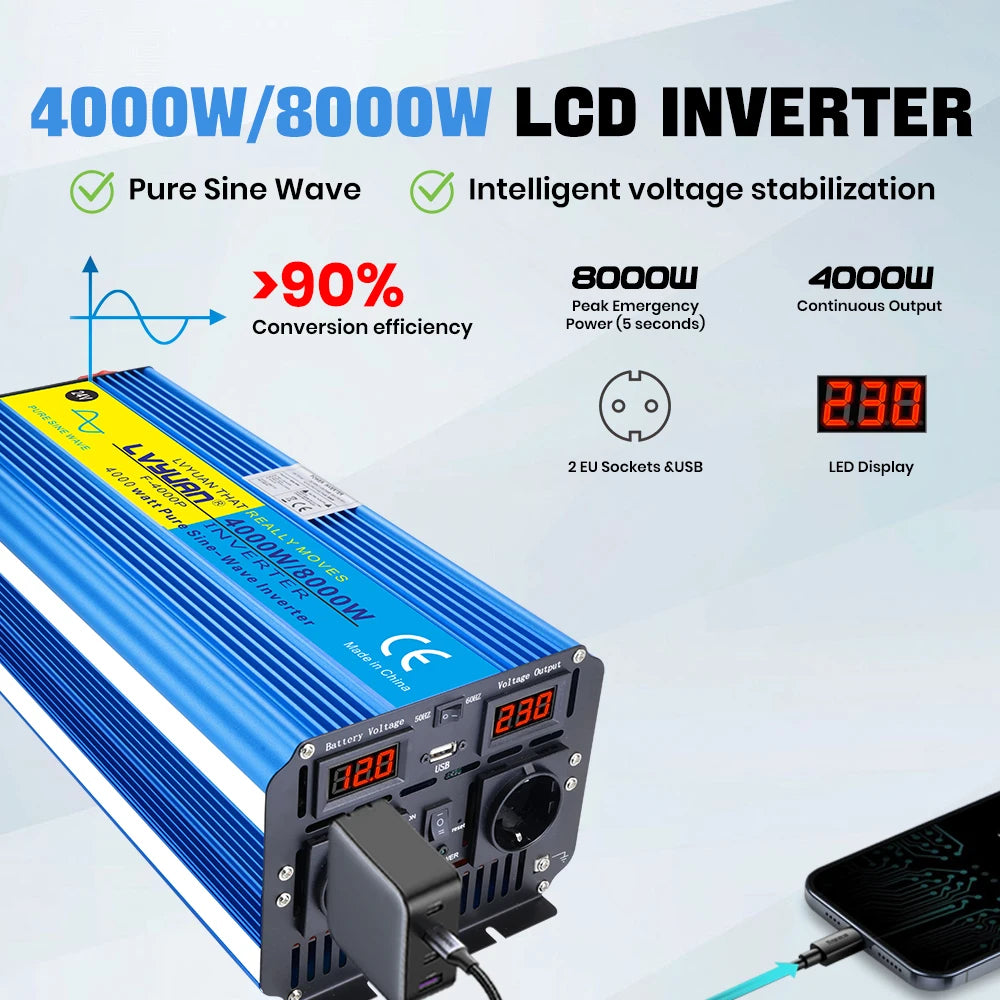

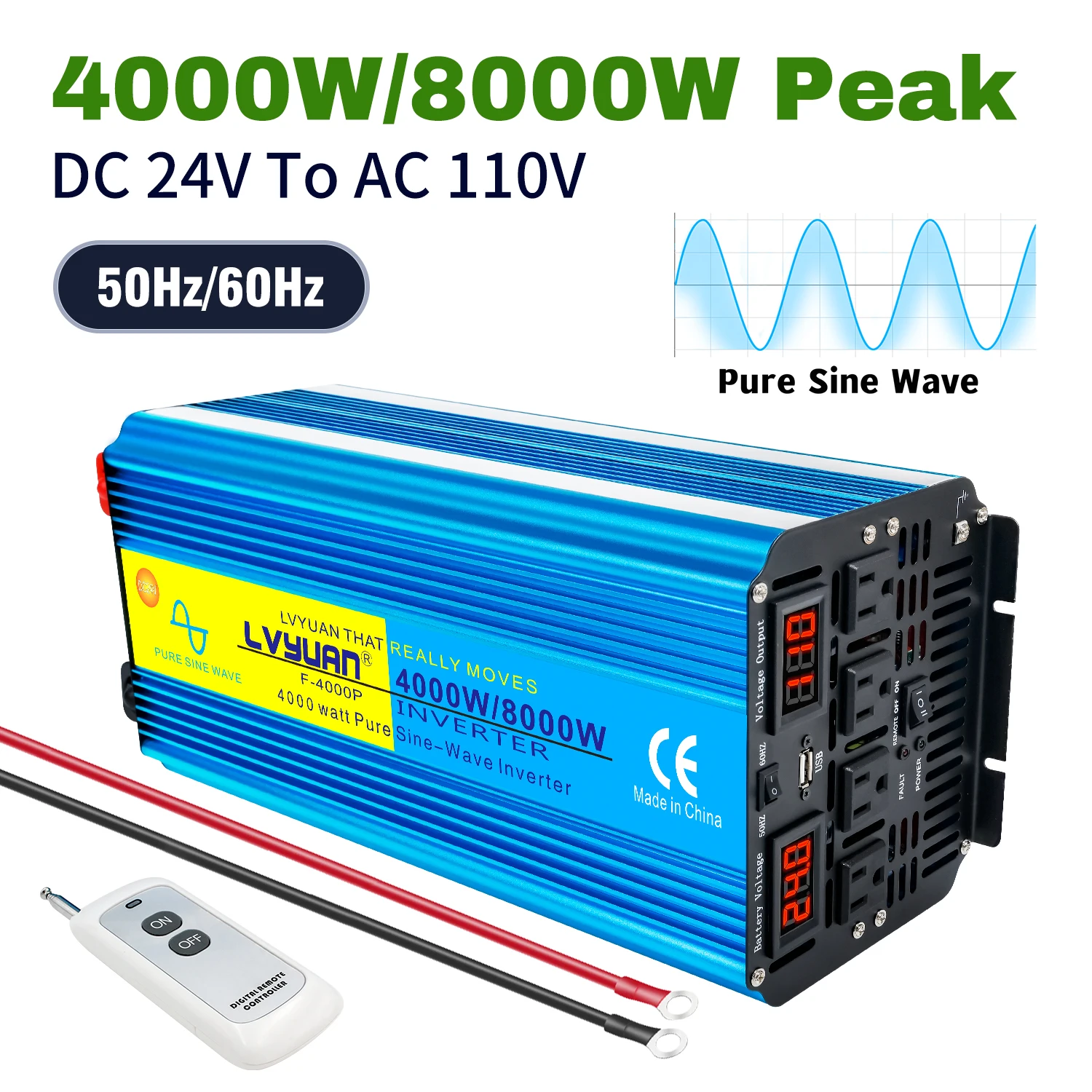

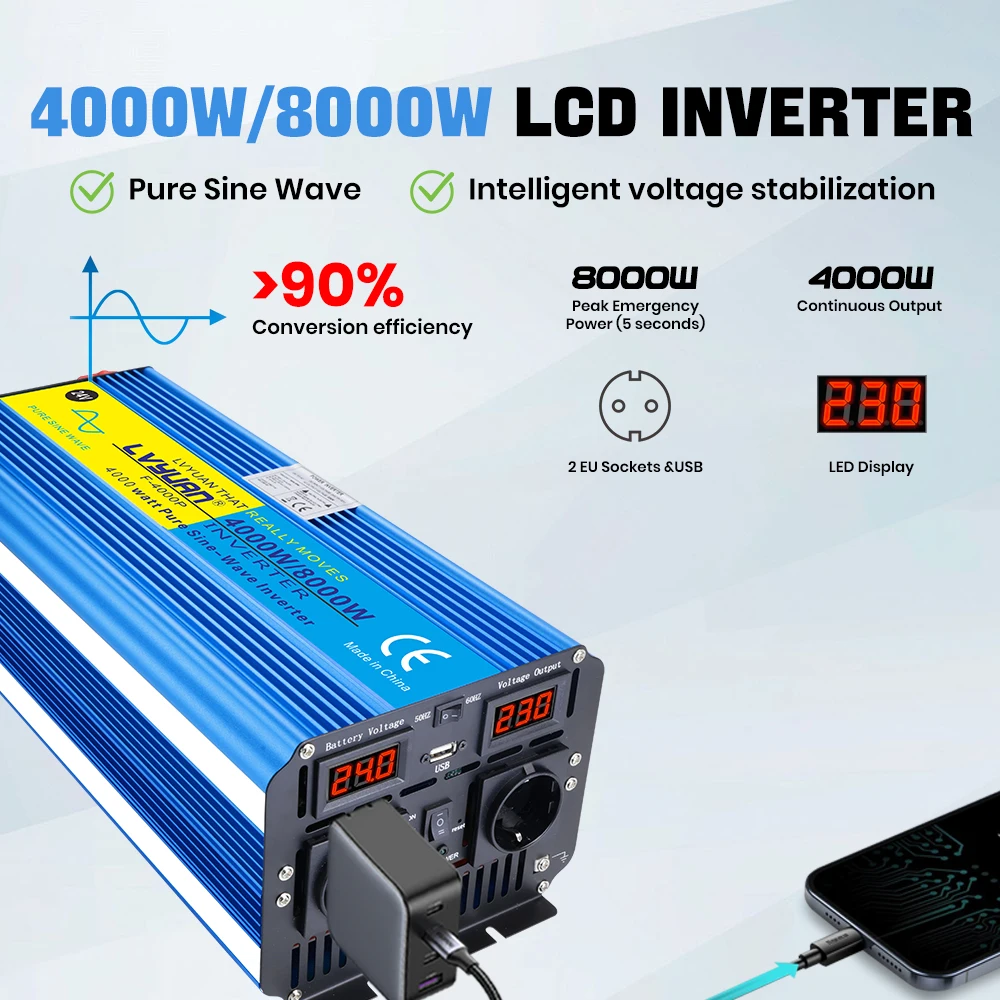

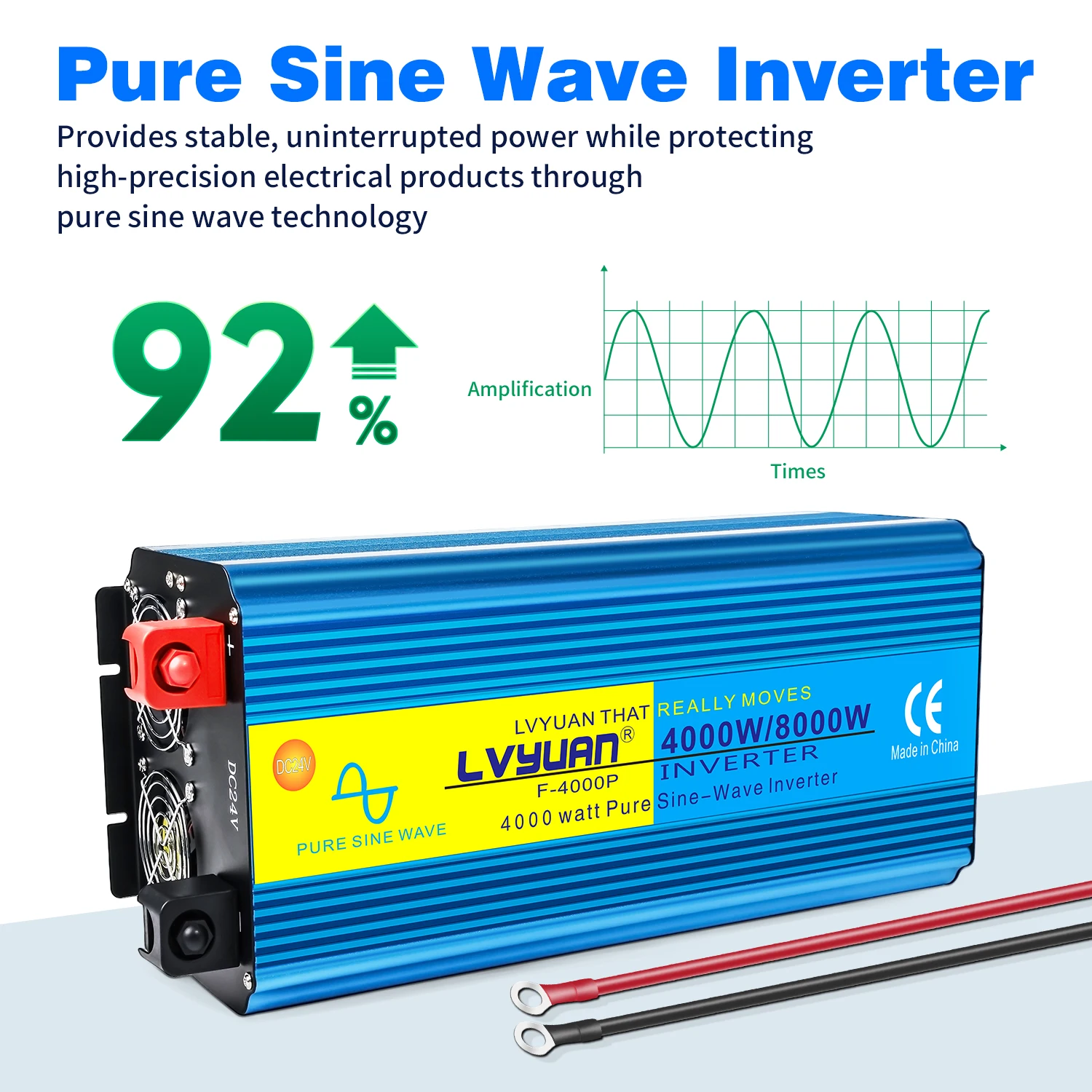

· Output Waveform : Pure Sine Wave

· Continuous Power: 4000W

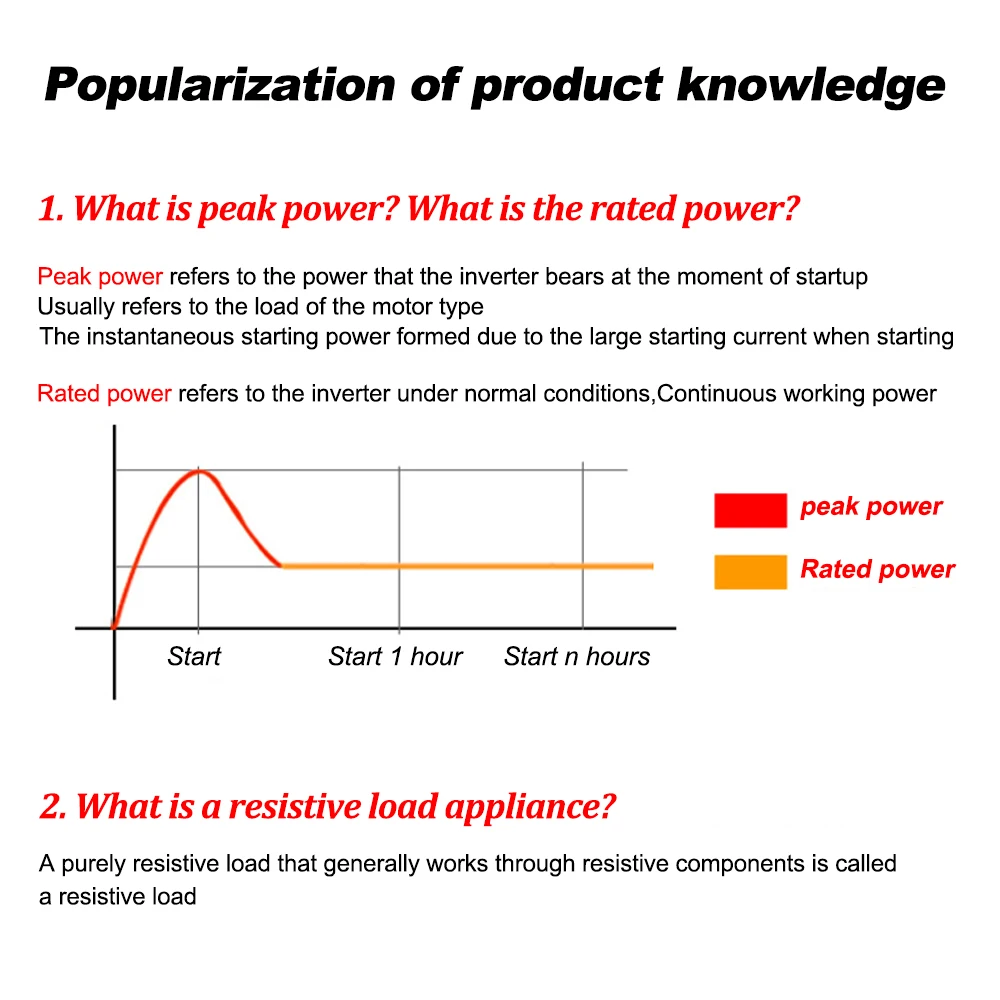

· Peak Output Power : 8000 Watts Peak

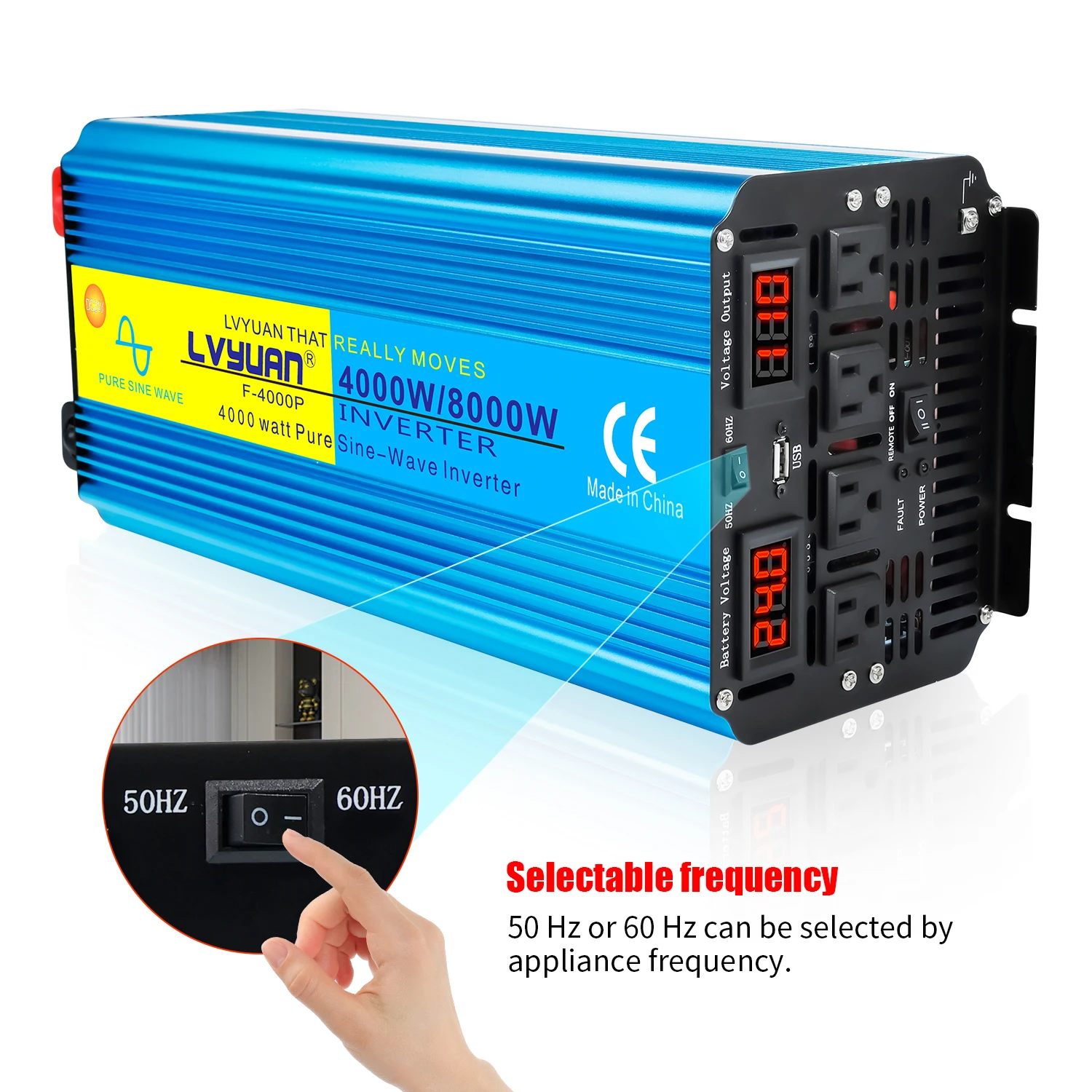

· Frequency : 50HZ±2HZ or 60HZ±2HZ

· No load current draw : <0.8Amps

· conversion Efficiency : >90%

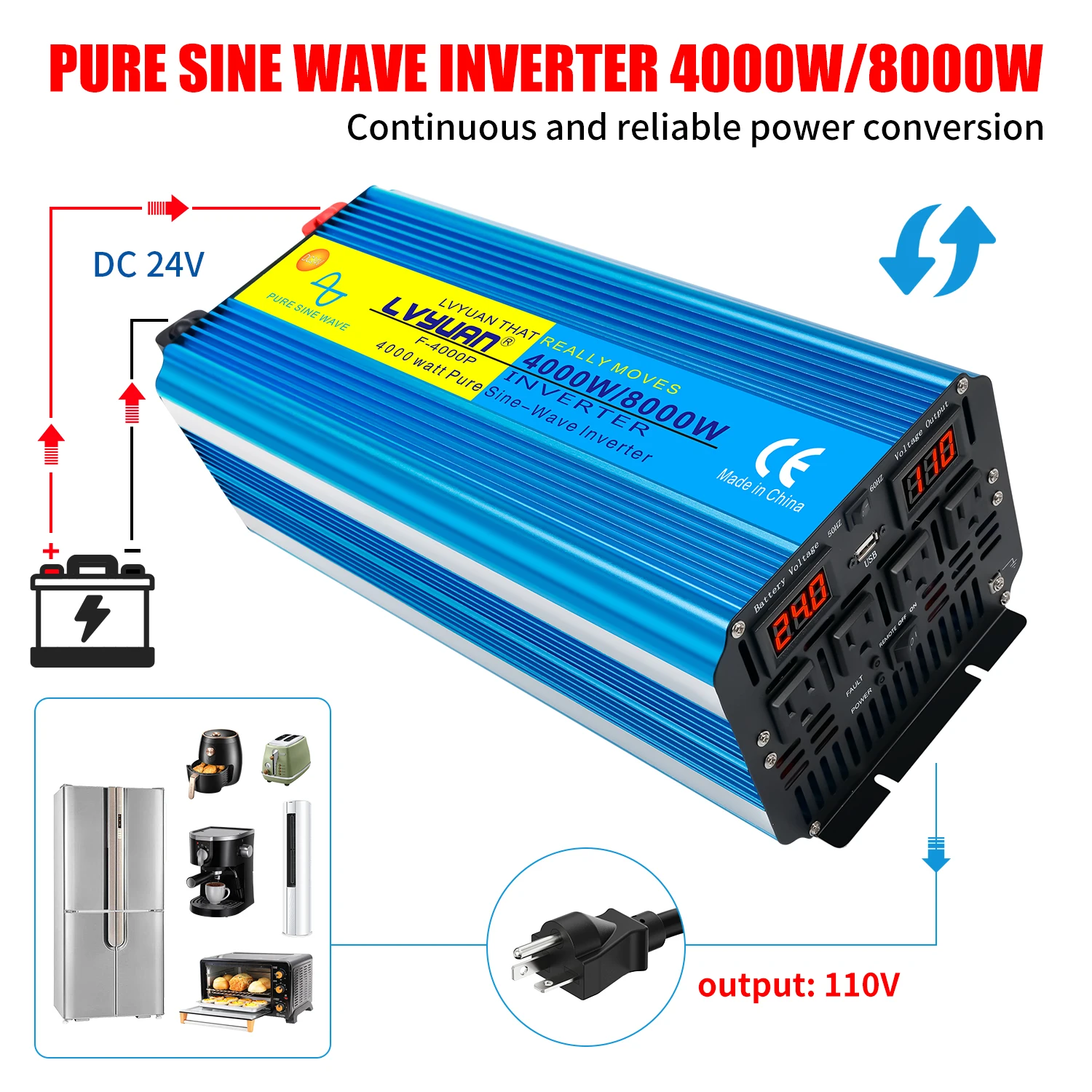

· input DC Voltage : 12V/24V

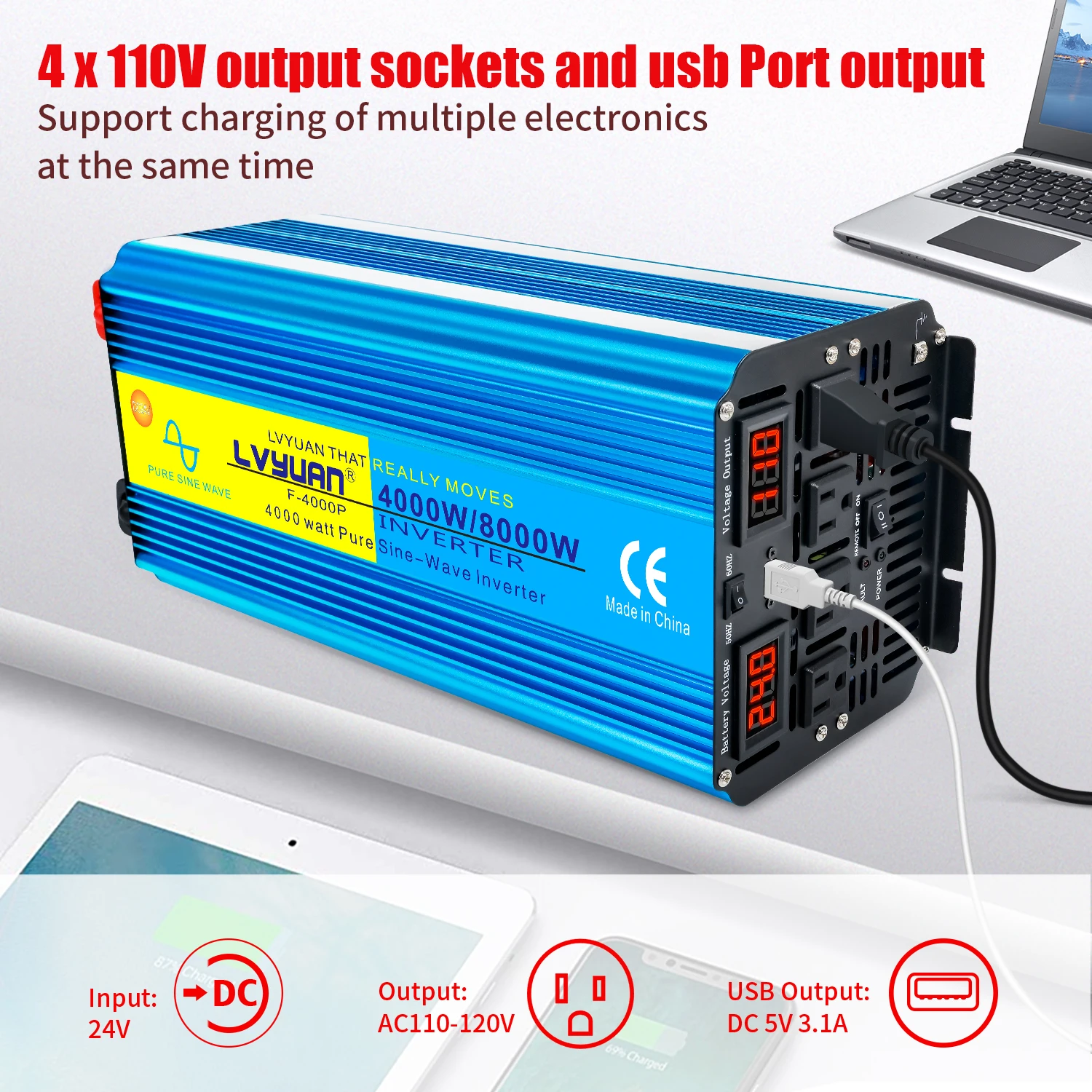

· USB Output : Yes

· DC Voltage Range : 10.5V-15.5V/18V-30V

· output AC Voltage : 110V(US)/220V(EU)

· AC Voltage Range : 110-130V/220V-240V

· Low Voltage Alarm : 10DC±0.5V/19DC±0.5V

· Low Voltage Shut Down : 9.5DC±0.5V/18DC±0.5V

· Over Load : Shut Off Output

· Over Voltage Shut Down : 15.5V/30.5V

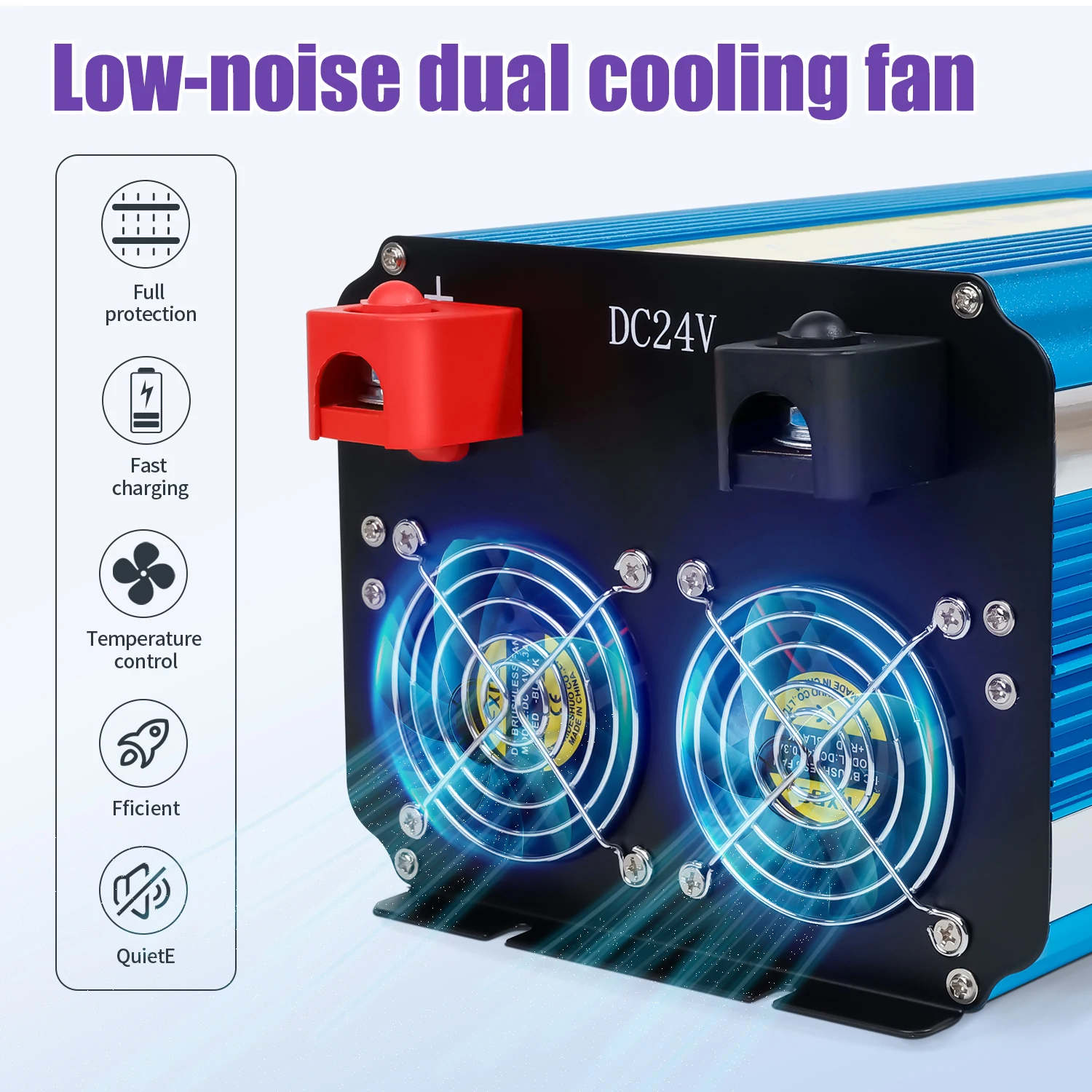

· Over Thermal : Shut Off Output Automatically

· Fuses : Short Circuit

· Start : Soft Start

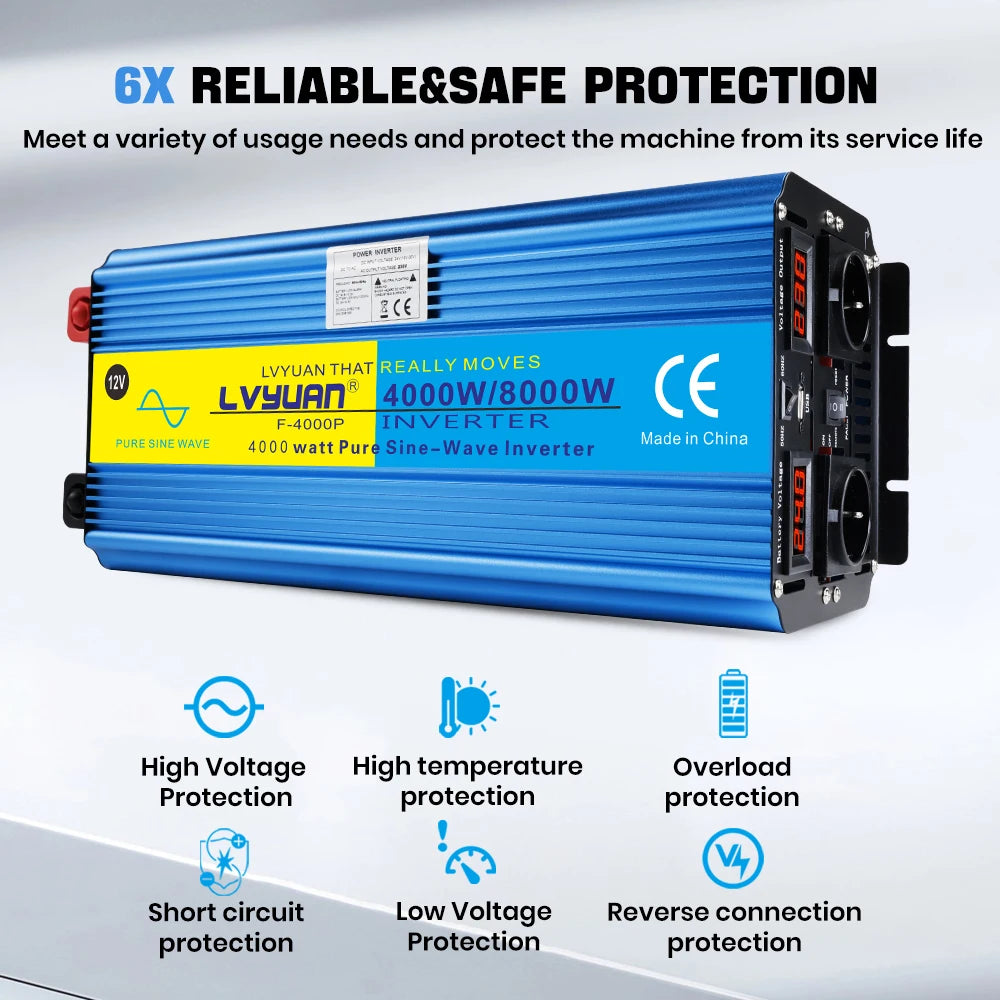

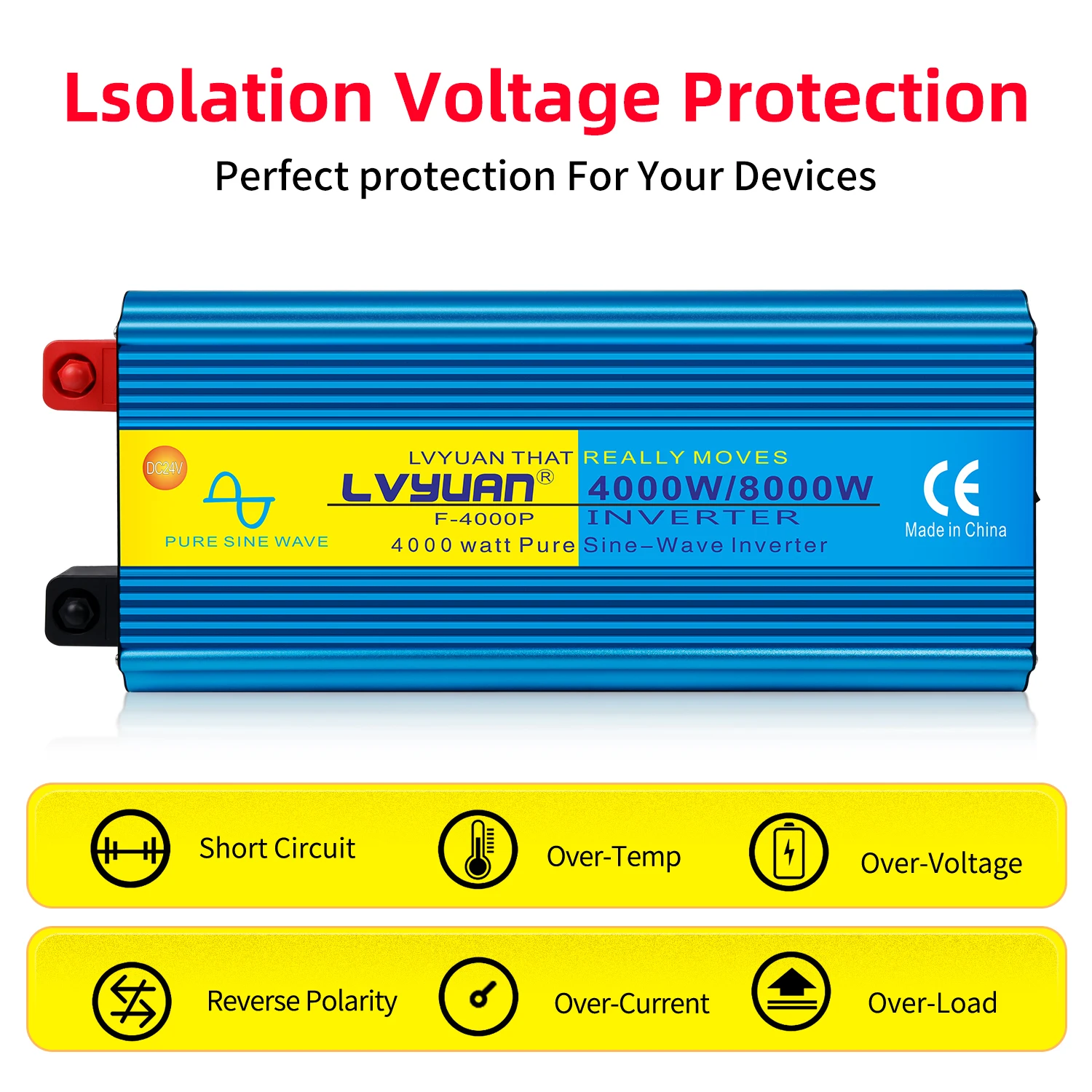

· 6 Safety Protection Function:
E-1：Low input voltageprotection
E-2：High input voltageprotection
E-3：Over temperatureprotection
E-4：Overload protection
E-5：Short circuit protection
E-6：Repeated faults shutdown,restart required

· Material: Aluminum Alloy

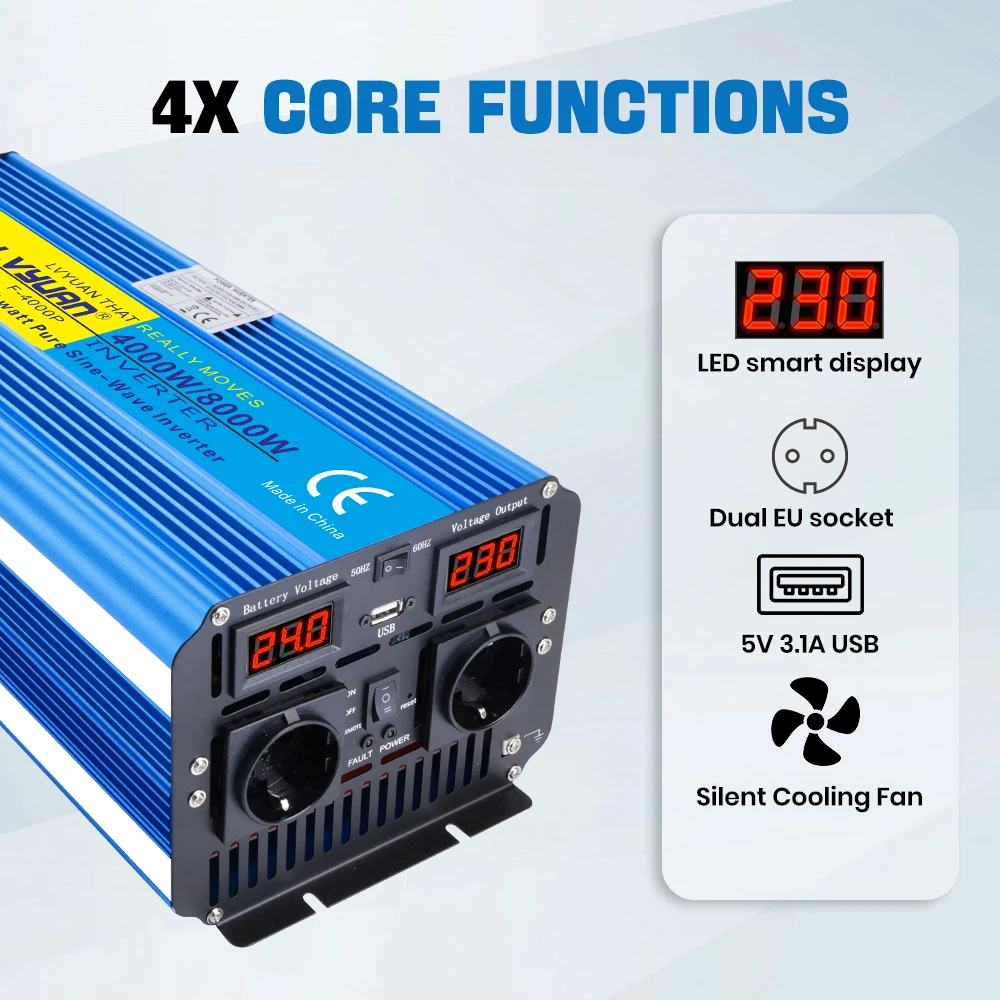

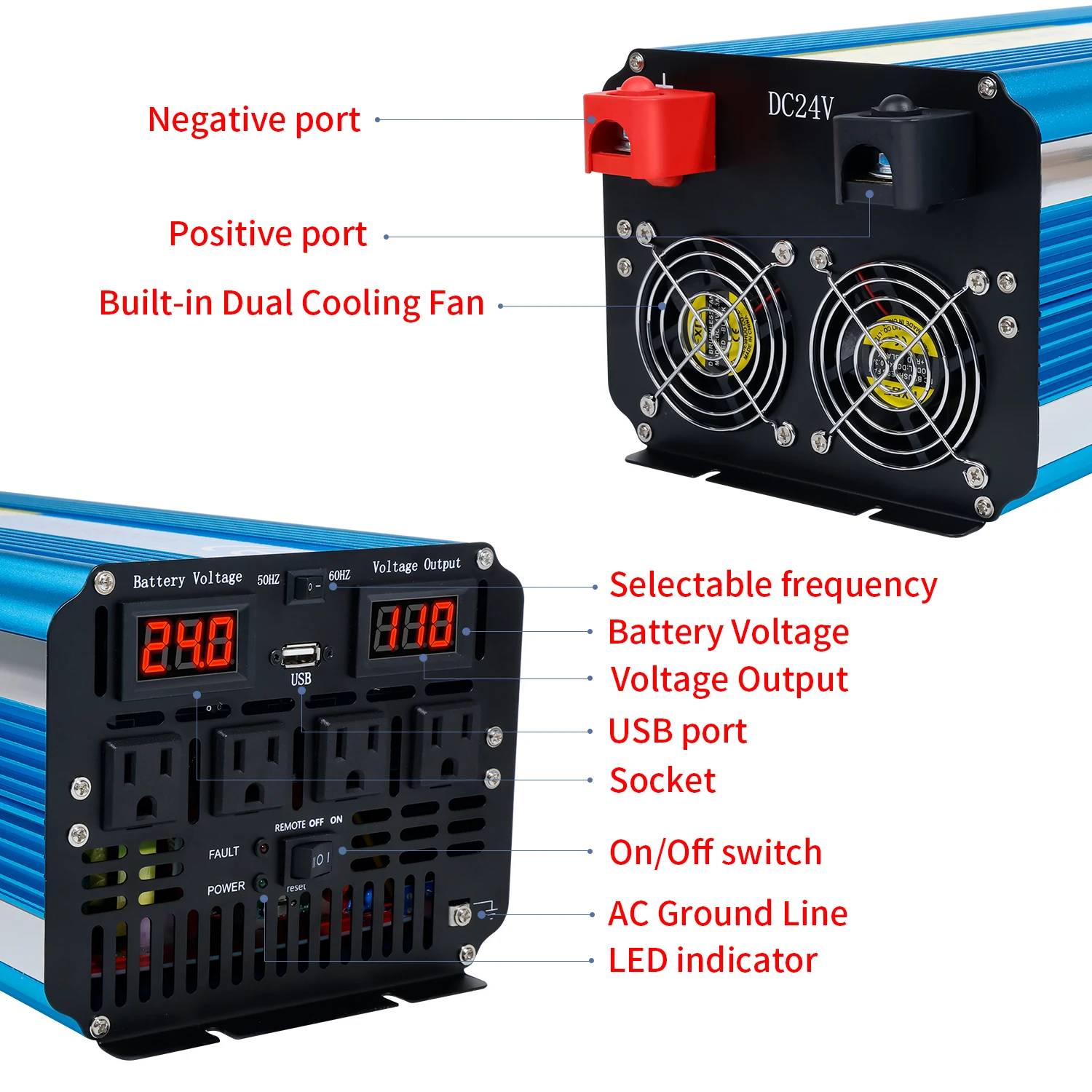

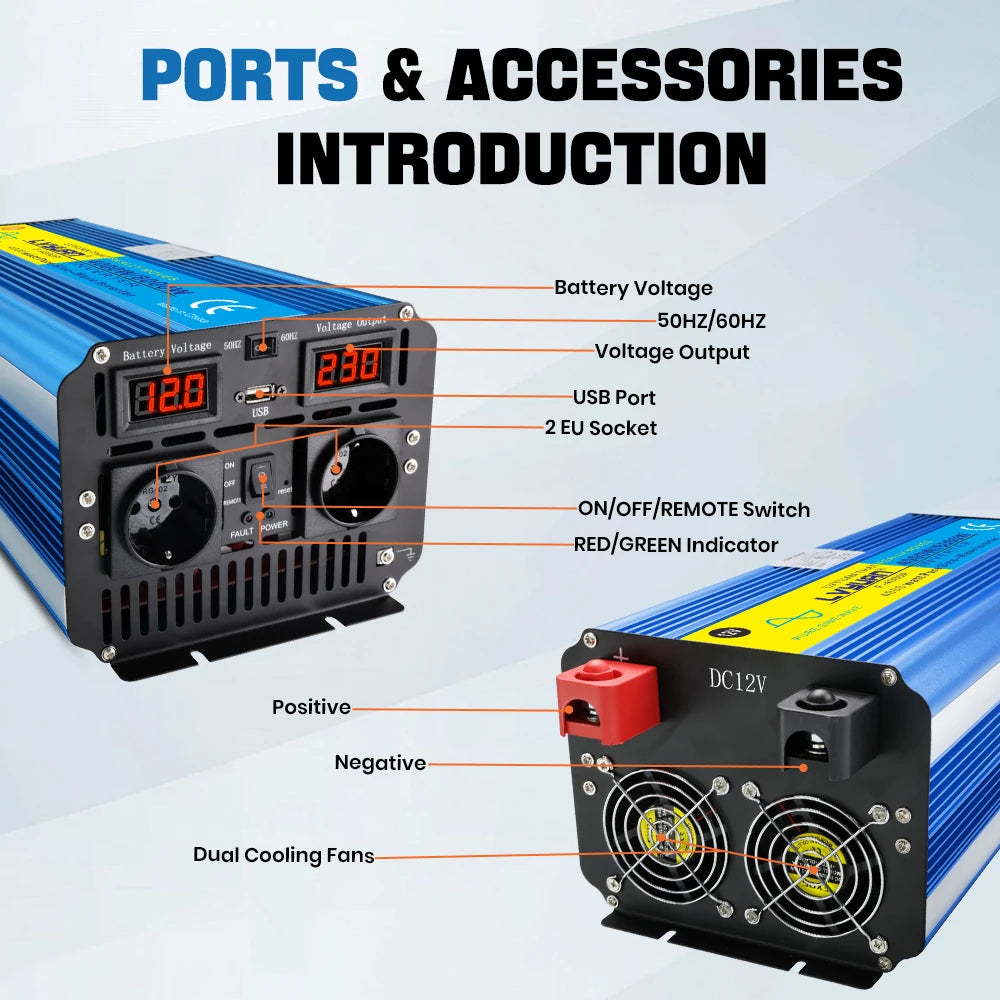

· Socket Style:EU/Universal/UK/AU/US

· USB : YES

· Machine Size(mm) : 420MM * 180MM * 142MM

· Net Weight(kgs) : 6.5KG

Package Included

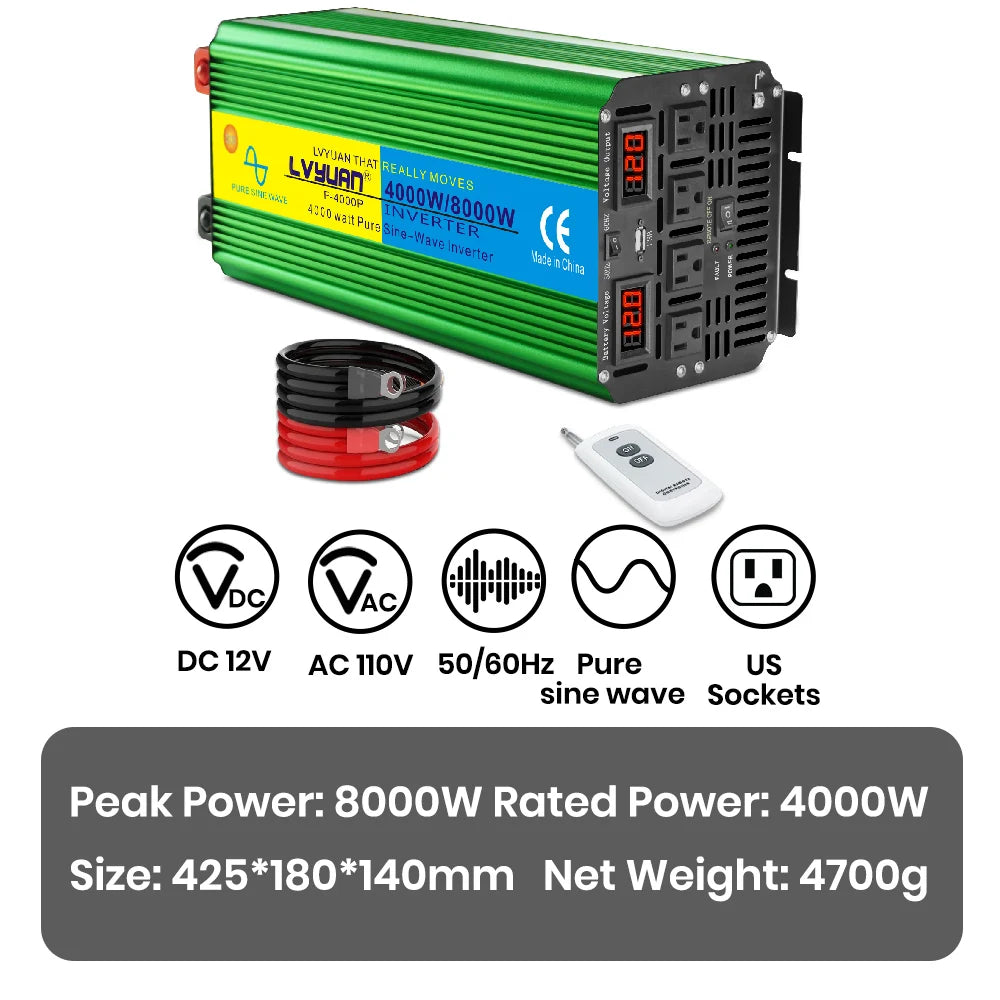

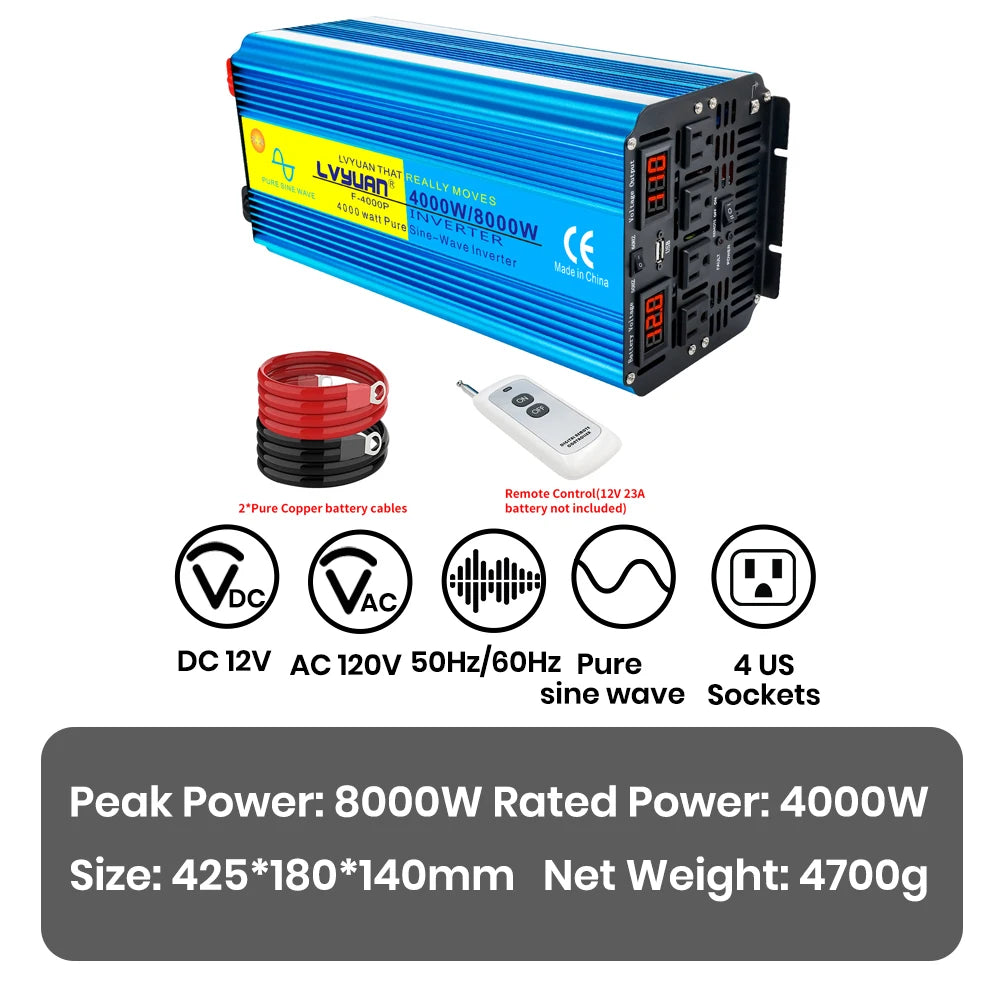

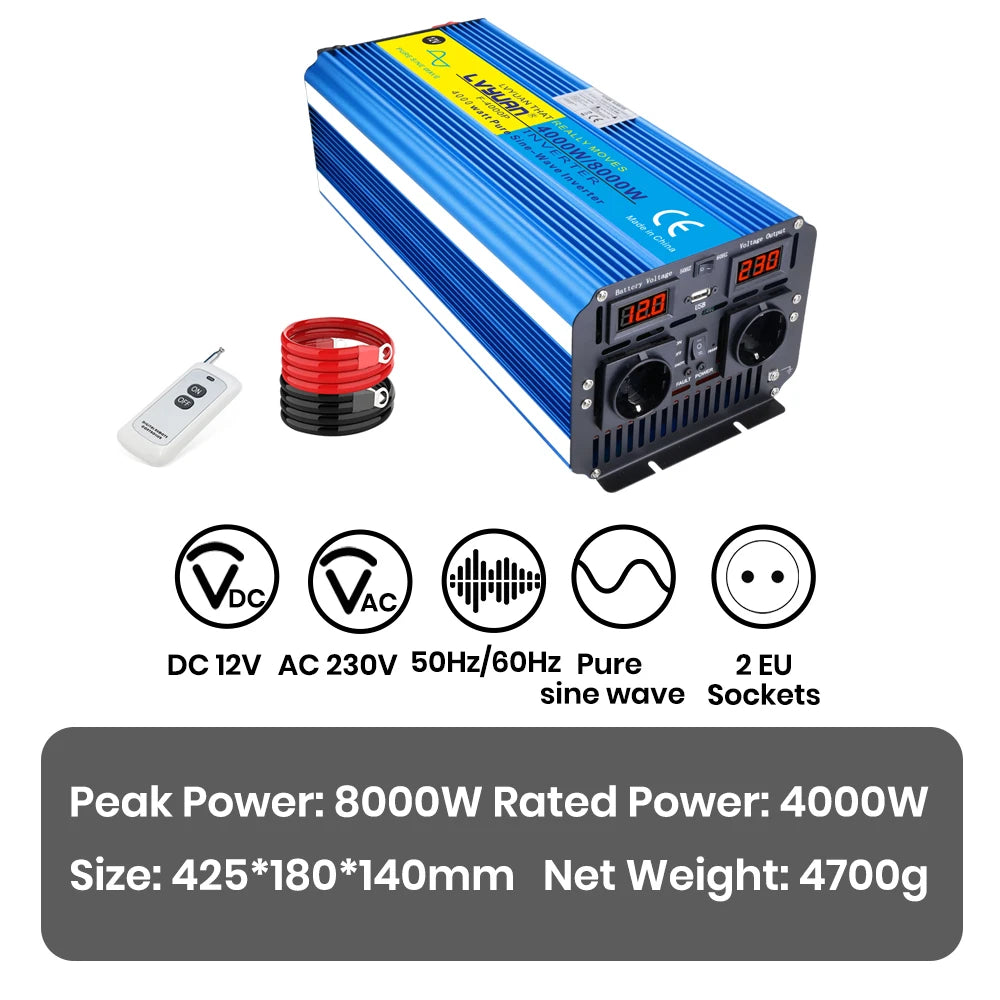

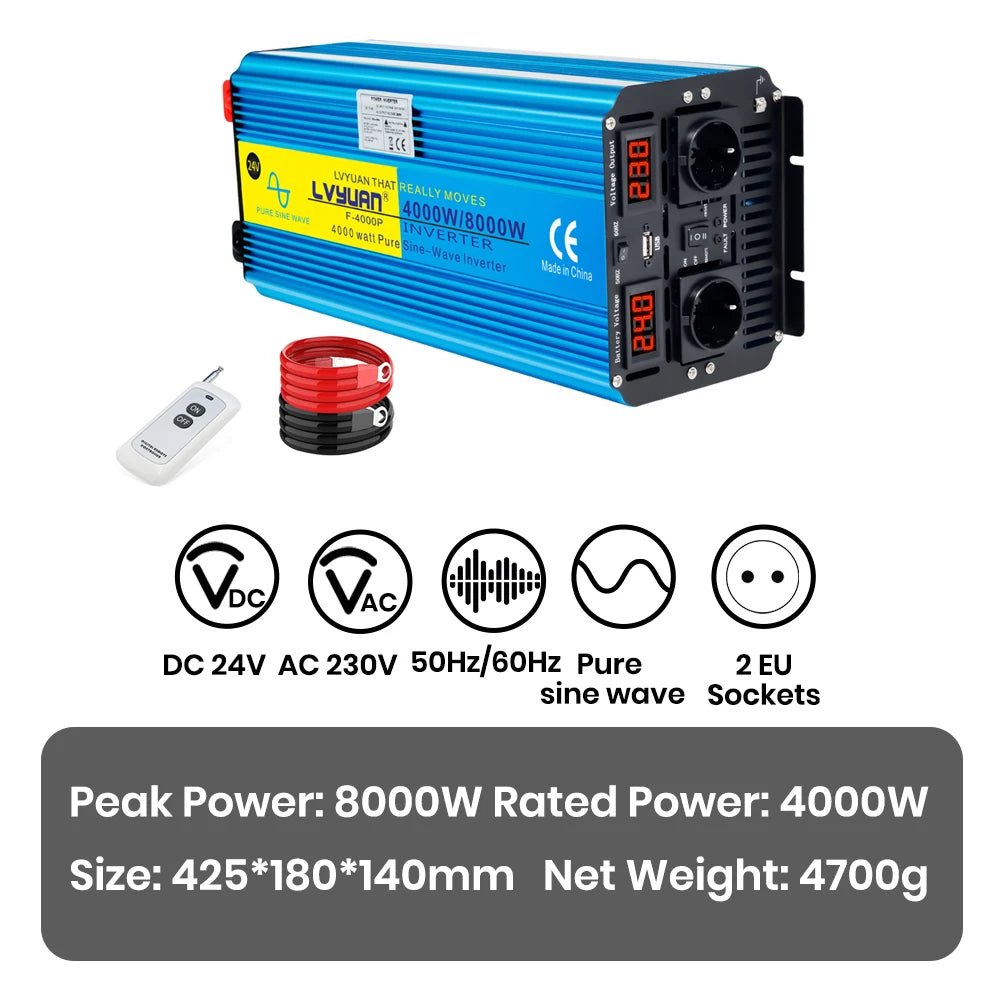

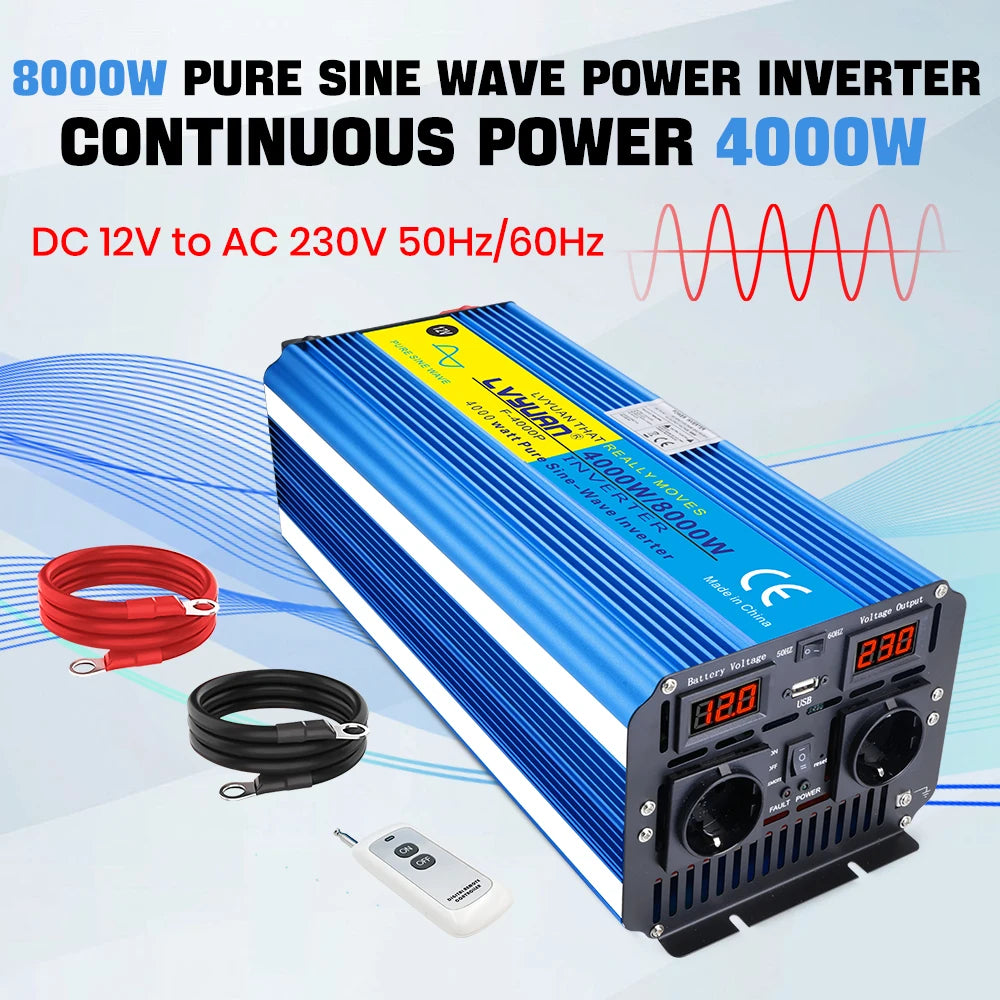

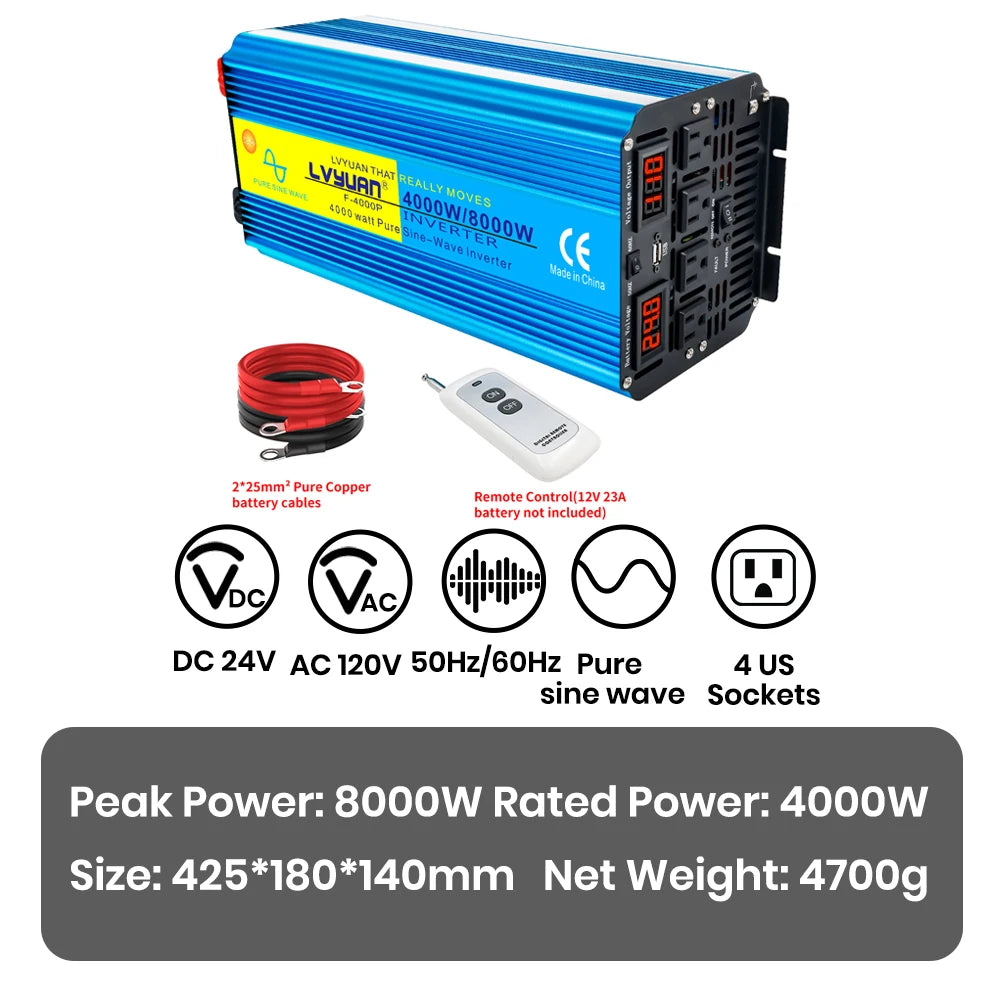

· 1 x 4000W/8000W pure sine wave power inverter

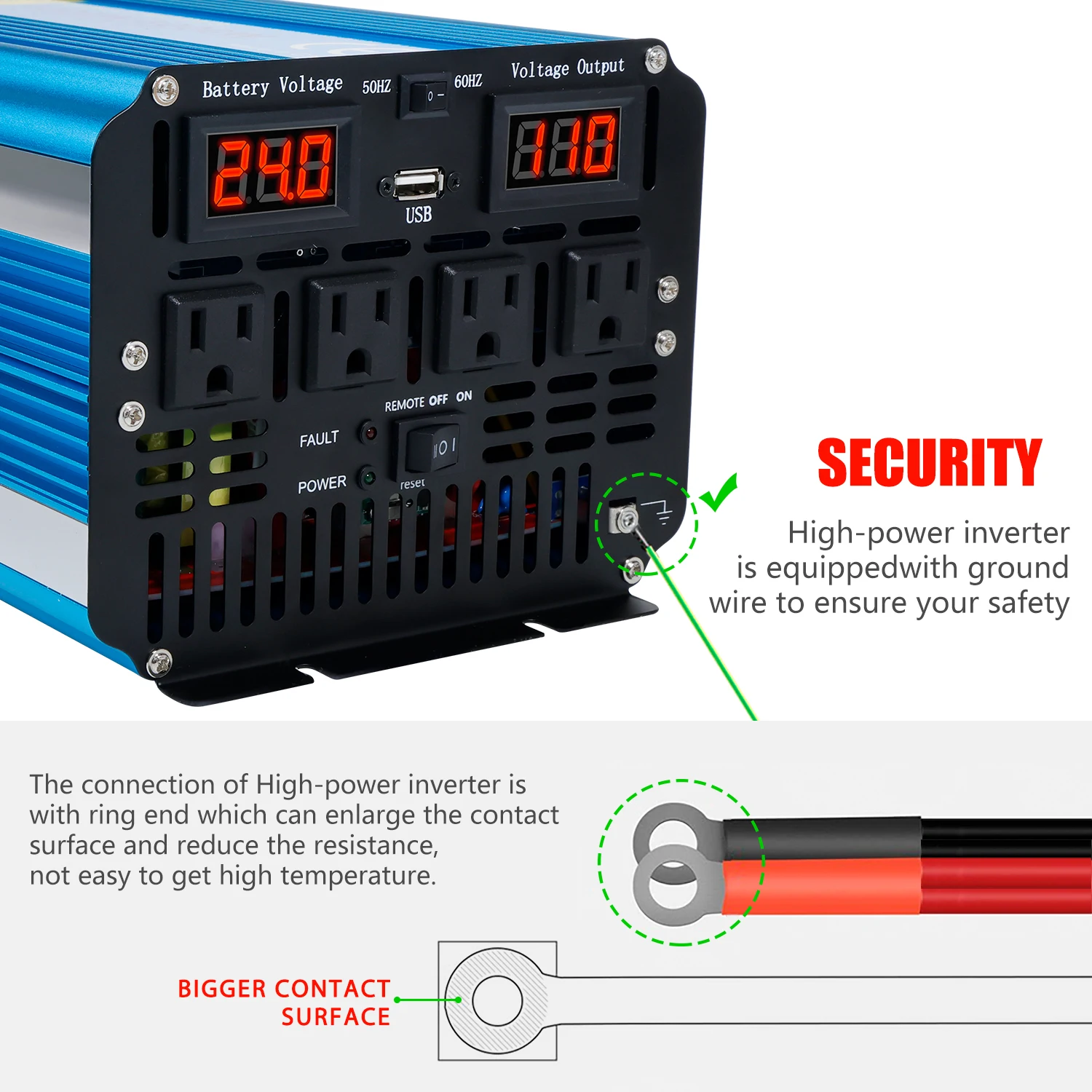

· 2 x Battery Clip Cable

· User Manual

PLEASE NOTE:

1.Please ensure that the rated power is higher than the appliance you want to apply.

2. If you want to run several devices at the same time, you should refer to the total wattage.

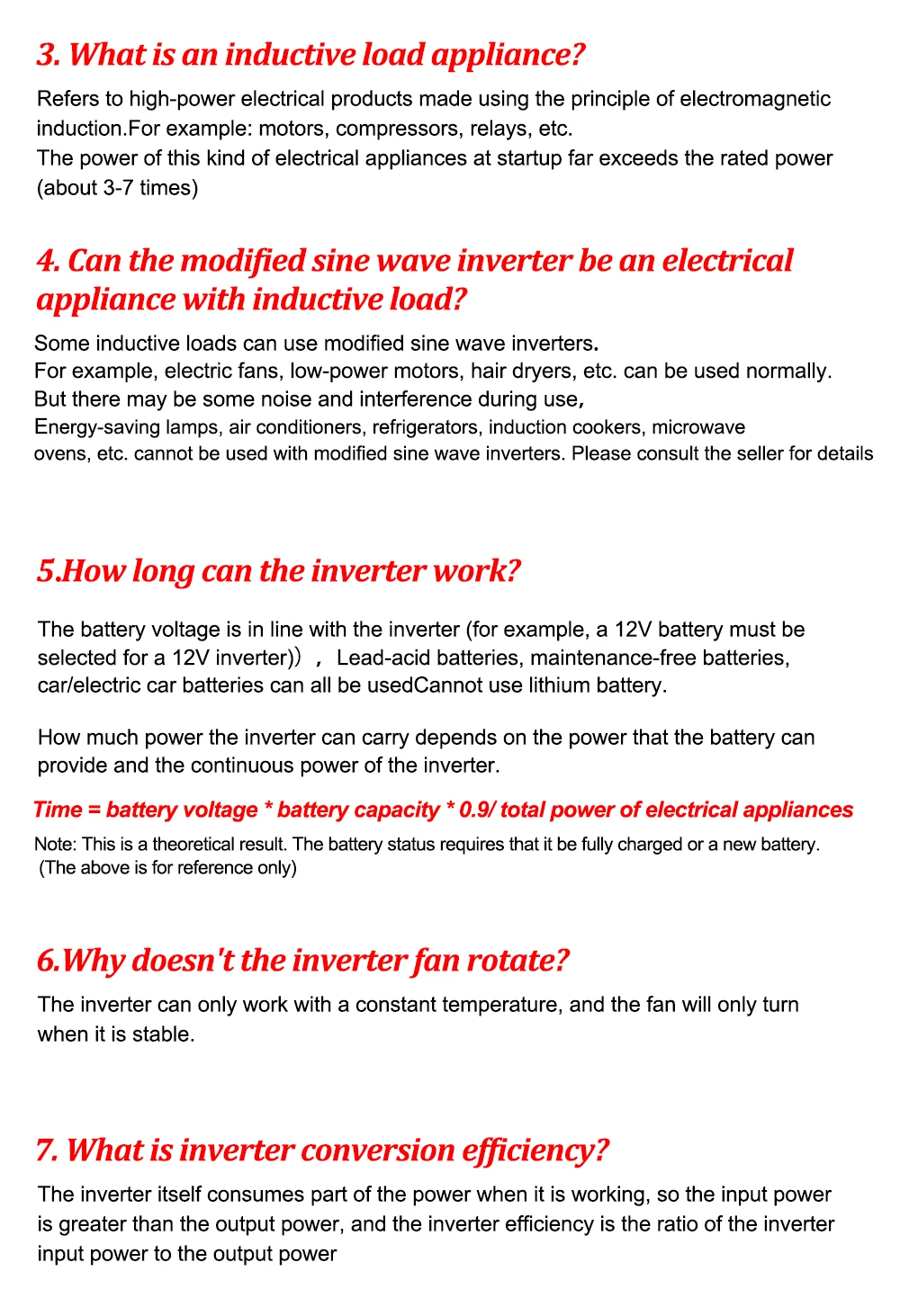

3. If you want to run the inductive load for a long time, choose the  Pure sine wave inverter .

4. Please use the standard battery cables we sent, or a full power output may not be guaranteed. And the spare fuses in the package are just used when the original ones are burned by accident.

5. Please do not connect the inverter with the grid power, and a reverse connection of positive and negative is also forbidden.

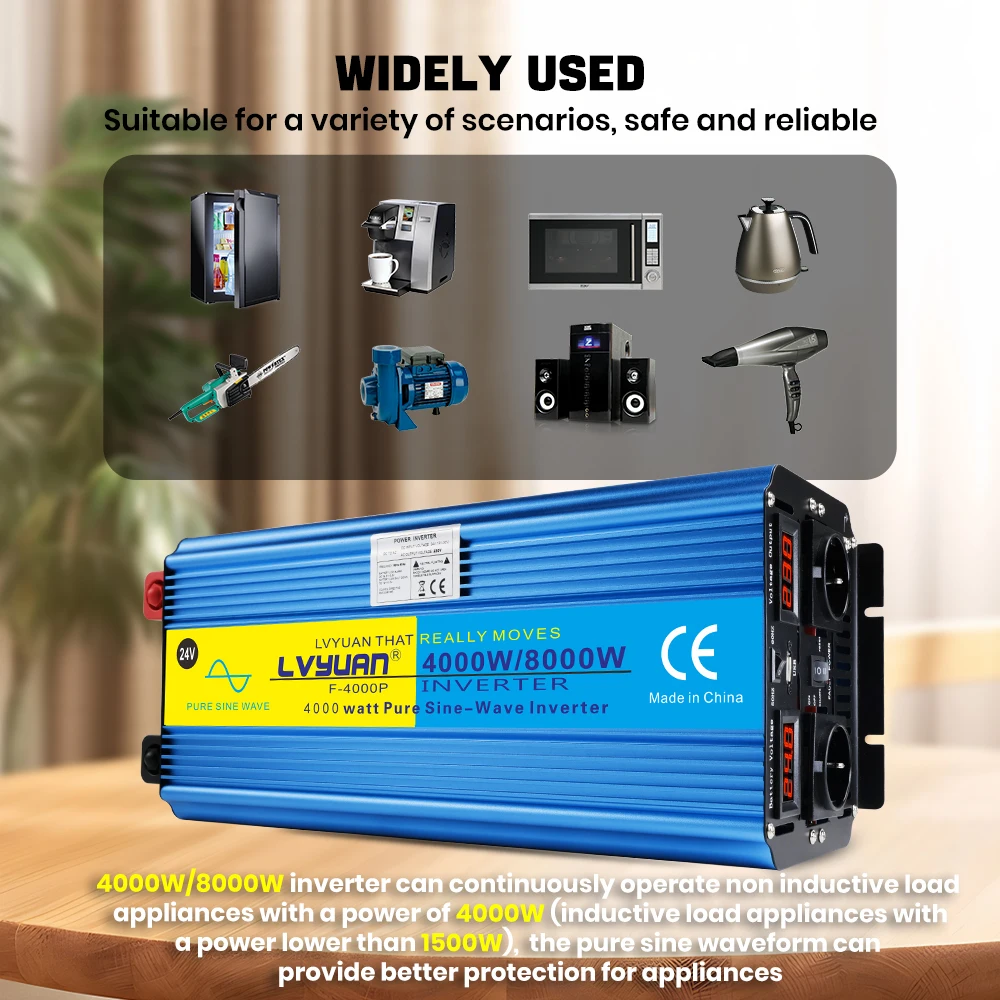

6. Please do not overload. If your applications are inductive loads, please choose the inverters whose continuous power is 3-7 times higher than the watts of your appliances. such as fridge, icebox, drill, washing machine, water pump, microwave oven, oven, vacuum cleaner, hair dryer, etc. with motor inside. Please make sure the constant power of our inverter meets your need before order, or consult us for more details.

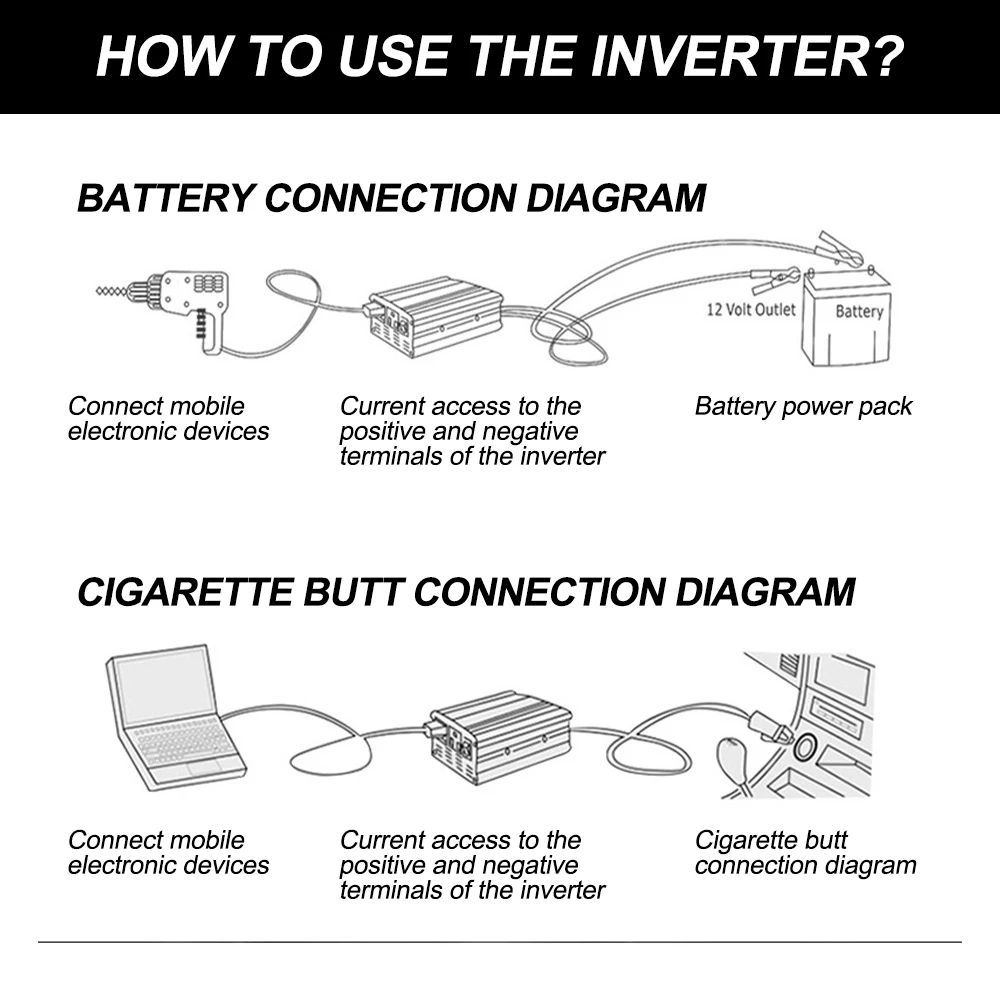

7.Car cigarette lighter can only support a power within 150W
