SPECIFICATIONS

Brand Name: MHPOWOS

Certification: CE,FCC,RoHS,pse,weee

Deployment size: 2163 x596x 28 mm

Flexible Solar Panel: No

Foldable Solar Panel: Yes

Folding Size: 596 x 540 x 58mm

High-concerned chemical: None

Material: Monocrystalline Silicon

Max. Power: 220W

Maximum Power Current (lmp): 5.5A Max

Maximum Power Voltage (Vmp): 40V

Model Number: MH-SP-002

Module Efficien: 24%

Number of Panels: 4

Open Circuit Voltage (Voc): 48V

Operating Temperature: -20~60C/-4~140 F

Peak Power: 220W±5%

Short Circuit Current (loc): 6.0A

Size: 596 x 540 x 58mm

Solar Energy Conversion Rate: 23.5%

Type: Solar Panel

Weight: 5.85kg±0.3kg

is_customized: Yes

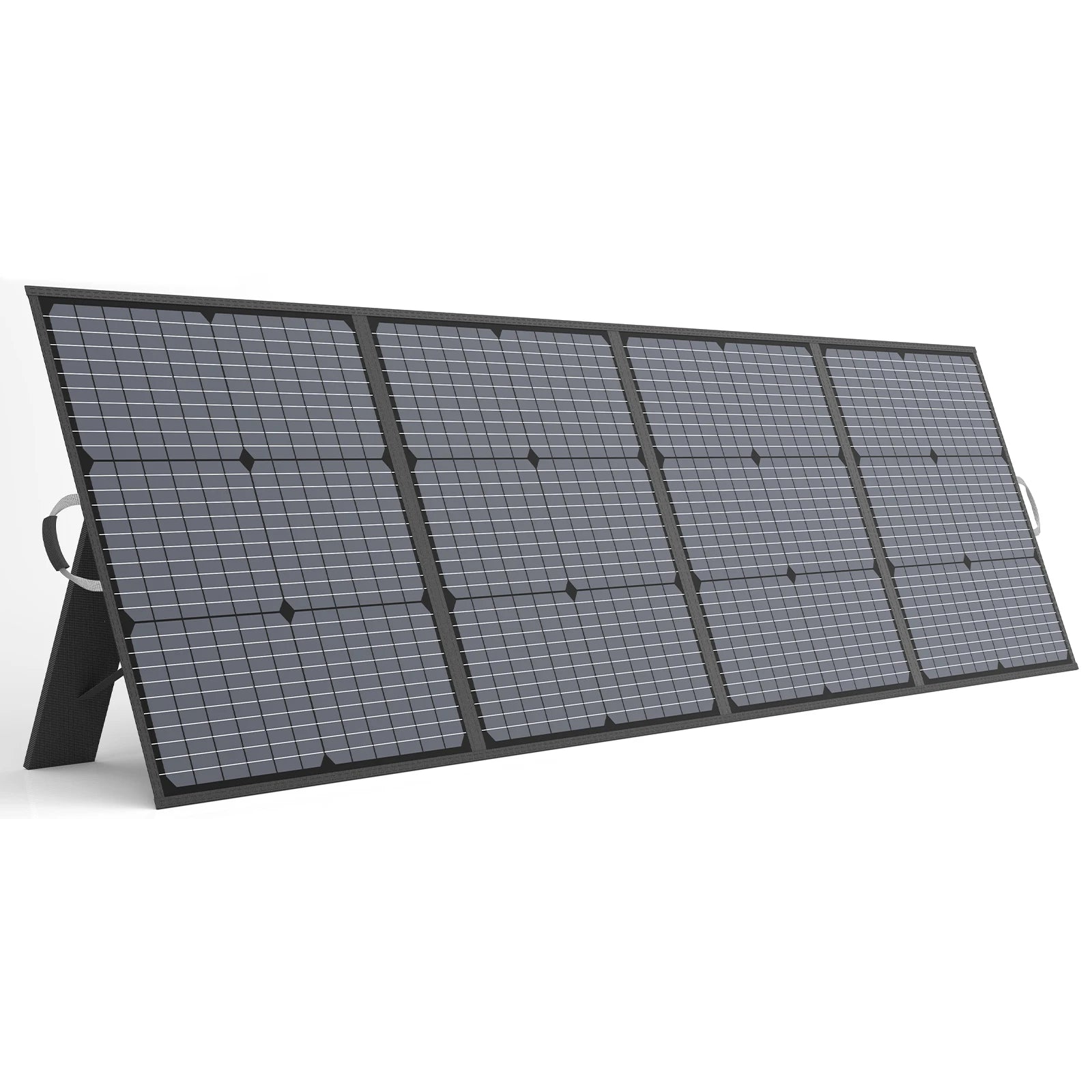

MHPOWOS Portable Solar Charger 40V 220W Foldable Solar Panel Kit for Jackery Bluetti Ecoflow Power stations RV Camping Patio



Highly Efficiency and 18 Months Long Term Warranty:MHPOWOS 220W solar panel is made from industry-leading monocrystalline silicon with a conversion rate of 23.5%.Quickly power up your devices such as powerstations,solar generators, computers at anywhere, anytime.

Portable and Foldable:The Solarpanel is equipped with an adjustable stand.You can adjust it according to the angle of the sun to get the maximum output power. The single product weighs 5.85kg and folds up like a briefcase,making it very easy to carry. Great for Home improvement,outdoors or camping.

IP67Waterproof and Dustproof:MHPOWOS portable solar panel is IP67 rated for waterproof and dust resistance. Solar Panel is designed to withstand harsh environments for outdoor activities.Simply unfold 220w solar panel, adjust stand and start to get clean and green energy power.

Higher Conversion & 40V Voltage:220W foldable monocrystalline solar panel has a conversion efficiency of 23.5%.220 Watt 40Vfoldable solar panel produces more energy and performs better than traditional solar panels in all weather conditions.

Installation Suggestion:Install the solar panel in the sunniest place possible, in a location that prevents accidental damage to the panel.Place the solar panel directly under the sun at an angle of 30-60 degrees to the ground.

Technical Parameters

System Configuration:Off-Grid,Solar Technology:Monocrystalline

Wattage:220W,Open Circuit Voltage (Voc):  48V,Short Circuit Current (loc): 6.0A

Maximum Power Voltage (Vmp): 40V,Maximum Power Current (lmp): 5.5A Max

Solar Energy Conversion Rate: 23.5%. Operating Temperature:-20~60C/-4~140 F

All technical data under standard test conditions: E=1000W/m²TC=25C AM=1.5

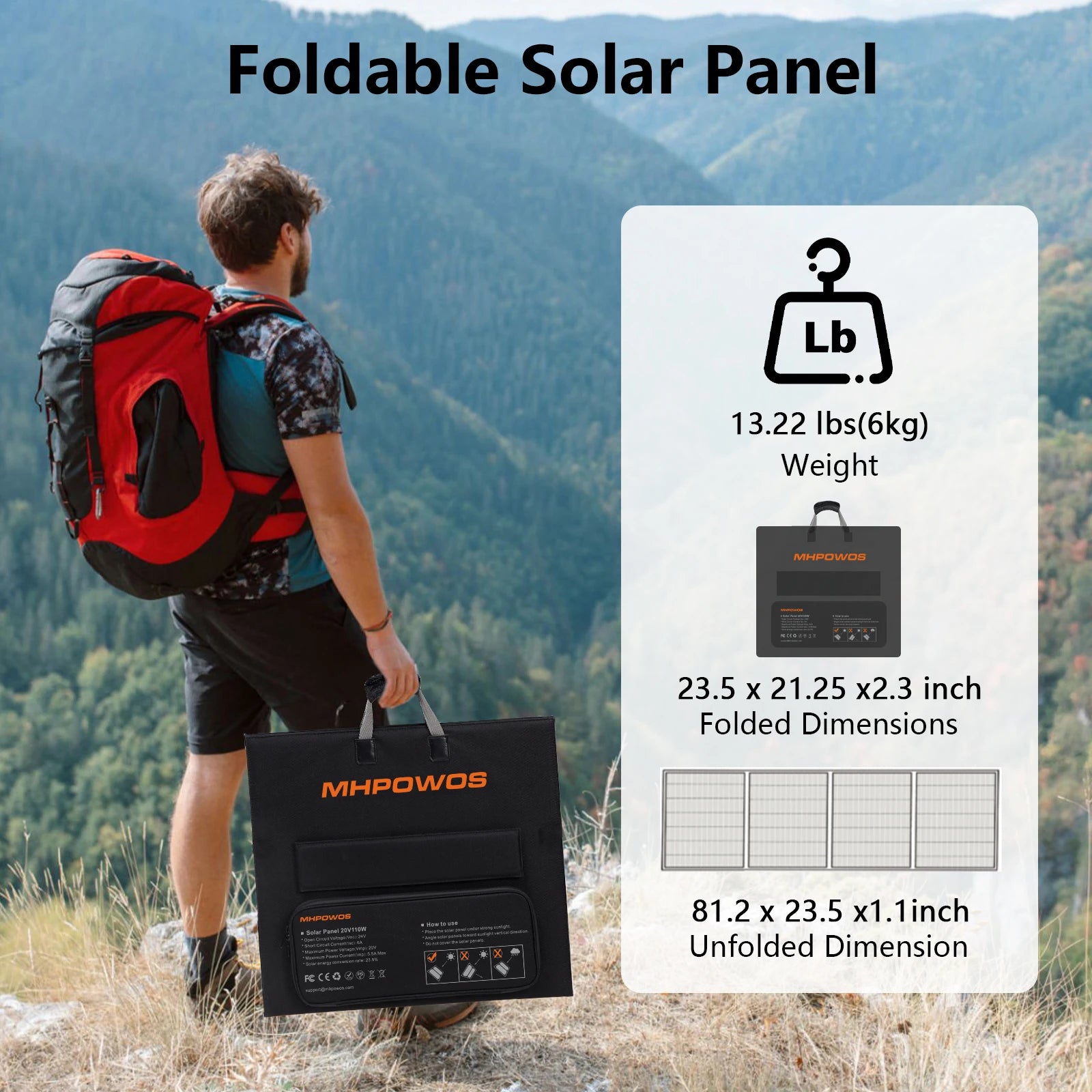

Dimension:Folding Size: 596 x 540 x 58mm(23.5 x 21.25 x2.3 inch),Expanded size: 2163 x596x 28 mm(81.2 x 23.5 x1.1inch),Weight: 5.85kg±0.3kg / 206.3 oz±10oz

WHAT'S INCLUDED:1*220W Solar panel with MC4 connector cable
