SPECIFICATIONS

Brand Name: SucceBuy

SucceBuy 12V 140A Split Charge Relay Kit

Keep Your Auxiliary Battery Charged on the Road.

Build a more capable dual-battery setup with the SucceBuy 12V 140A Voltage-Sensing Split Charge Relay Kit.

Designed for compatible RVs, campers, ATVs, UTVs, and other 12V vehicle applications, the voltage-sensing relay automatically manages the connection between your starting and auxiliary batteries—helping charge your secondary battery while the vehicle's charging system is operating while helping isolate it when appropriate.

Why You'll Love It

• 140A Relay Rating – Designed for compatible high-current 12V dual-battery applications.

• Automatic Voltage Sensing – Monitors system voltage to automatically manage battery connection and isolation.

• Dual-Battery Support – Helps charge an auxiliary battery from the vehicle's charging system.

• Helps Protect Starting Power – Battery isolation helps reduce the chance of accessories draining your starting battery when the batteries are disconnected.

• Multiple Cable Lengths – Available with 2m, 4m, 5m, and 6m cable options for different installations.

• 12V System Design – Made for compatible 12V vehicle electrical systems.

• Adventure-Ready Applications – Great for RVs, campers, ATVs, UTVs, and overlanding setups.

• Automatic Operation – Once properly installed, the voltage-sensing relay manages connection based on system voltage.

Great For

RVs • Campers • Overlanding • ATVs • UTVs • Auxiliary Batteries • Dual-Battery Systems • Off-Grid Travel

How Does It Work?

When your vehicle is running and the charging-system voltage reaches the relay's activation threshold, the voltage-sensing relay can connect the auxiliary battery so it can receive charge.

When system voltage drops below the relay's disconnect threshold, the batteries are separated again.

This allows you to use an auxiliary battery for compatible lights, camping equipment, and other accessories without intentionally drawing those loads directly from your vehicle's starting battery.

Choose Your Cable Length

Available configurations include:

• 2 Meter / 6.6FT

• 4 Meter / 13.1FT

• 5 Meter / 16.4FT

• 6 Meter / 19.7FT

Choose the appropriate length based on the distance between your starting battery, auxiliary battery, and planned relay installation location.

Specifications

• Brand: SucceBuy
• Product Type: Voltage-Sensing Split Charge Relay Kit
• System Voltage: 12V
• Relay Rating: 140A
• Cable Options: 2m / 4m / 5m / 6m
• Application: Dual-Battery Charging / Isolation
• Current Draw-Charging: 280mA
• Current Draw-Standby: 8mA
• Cut-in Voltage: 13.3V
• Cut-out Voltage: 12.8V
• Delay Time: 5 Seconds
• IP Rating: IP65
• Intermittent Current: 160A
• Power Studs: M6 Stainless Steel

Important Use Information

Verify your vehicle's charging system, battery chemistry, cable requirements, fuse protection, and electrical compatibility before installation.

A voltage-sensing relay is not necessarily an appropriate replacement for a DC-to-DC charger in every vehicle or battery setup. Vehicles with smart alternators and some lithium auxiliary batteries may require a dedicated DC-to-DC charging system.

Use appropriately sized cables and circuit protection for the installation. High-current 12V electrical systems can cause severe overheating, fire, or equipment damage if improperly wired.

If you're unfamiliar with automotive electrical systems, installation by a qualified automotive or RV electrical professional is recommended.

12V 140A Split Charge Relay Kit

Complete Accessories & Weather Resistance & Smart Charging

SucceBuy dual battery isolator kit enables your accessories to run from a separate battery while the engine is not running on your vehicle. In the meantime, it keeps your main battery charged and ensures your vehicle is always ready to go. We provide all the accessories needed for a complete installation. The SucceBuy split charge relay kit fits perfectly into most cars, RVs, trucks, caravans, ships, boats, yachts, etc. Charge up optimally and stand up to the toughest challenges with SucceBuy.

• Dual Battery Isolator

• Easy to Install

• Rugged & Durable

• Superb IP65 Waterproof

• Fit Various Vehicles

Tough Equipment & Tools, Pay Less

SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose SucceBuy?

• Premium Tough Quality

• Incredibly Low Prices

• Fast & Secure Delivery

• 30-Day Free Returns

• 24/7 Attentive Service

Key Features

All Accessories Included

The split charger relay kit is equipped with all parts needed for a complete installation, including screws, cable ties, etc.

Simple to Connect

No alternator or ignition connection is needed. An easy 3-wire connection at the battery can be used with the existing wiring in the vehicle.

IP65 Waterproof Grade

The IP65 protection level ensures the split charger can be used optimally and remains protected from dust, rain, vibration, etc.

High-Quality Internal Layer

Silicone sealed inner layer is more secure and has anti-vibration capabilities. The plastic shell has high impact strength.

Thickened Battery Cable

The battery cable uses a pure flame retardant copper core and can be used for a long time. Total length: 2 Meters.

Wide Compatibility

The 12v split charge relay kit is ideal for installation into ATVs, UTVs, trucks, motor homes, and camping applications.

2 mtr Battery Cable Specifications

• Model: JDQTJ-2M

• Rating Voltage: 12V DC

• Continuous Current: 140A

• Intermittent Current: 160A

• Cut-in Voltage: 13.3V

• Cut-out Voltage: 12.8V

• IP Rating: IP65

• Material: Nylon Plastic

• Current Draw-Charging: 280mA

• Current Draw-Standby: 8mA

• Power Studs: M6 Stainless Steel

• Delay Time: 5 Seconds

• Disengage Delay: About 5-10 Seconds

• Operation Temperature Range: -30 to 105℃ / -22 to 221℉

• Item Dimensions(L x W x H): 2.66 x 2.11 x 2.66 in / 6.76 x 5.36 x 6.76 cm

• Net Weight: ‎4.14 lbs / 1.88 kg

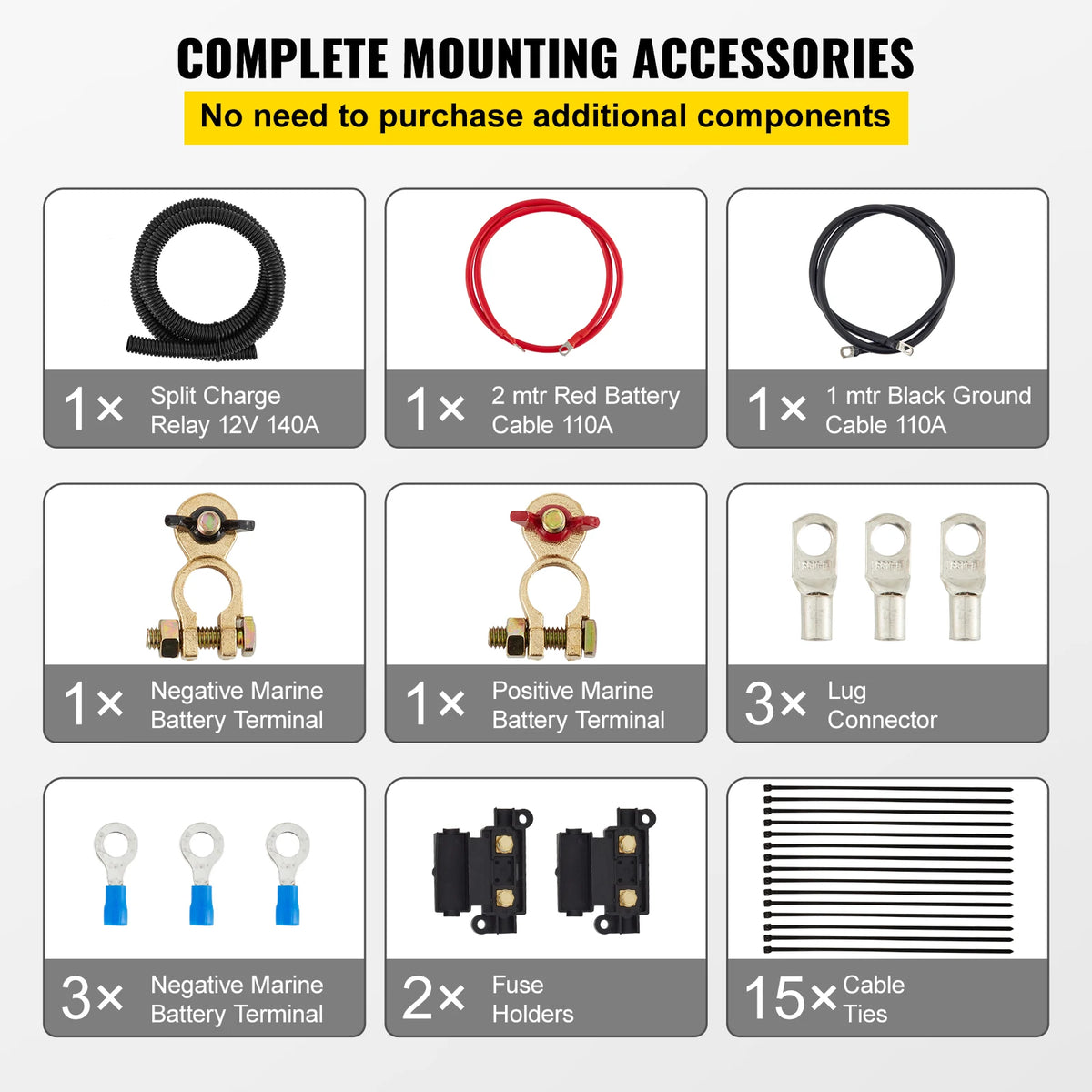

Package Content

• 1 x Split Charge Relay

• 2 x 1 mtr Red Battery Cable 110A

• 1 x 1 mtr Black Ground Cable 110A

• 1 x Negative Marine Battery Terminal

• 1 x Positive Marine Battery Terminal

• 2 x Fuse Holders

• 3 x Lug Connector

• 3 x Insulated Blue Ring Terminal

• 15 x Cable Ties

• 2 x 250 mm Red 110A Cable

• 2 x Shrink Tube

• 1 x Drill Bit

• 1 x Black Split Conduit

• 1 x Set of Screws

4 mtr Battery Cable Specifications

• Model: JDQTJ-4M

• Rating Voltage: 12V DC

• Continuous Current: 140A

• Intermittent Current: 160A

• Cut-in Voltage: 13.3V

• Cut-out Voltage: 12.8V

• IP Rating: IP65

• Material: Nylon Plastic

• Current Draw-Charging: 280mA

• Current Draw-Standby: 8mA

• Power Studs: M6 Stainless Steel

• Delay Time: 5 Seconds

• Disengage Delay: About 5-10 Seconds

• Operation Temperature Range: -30 to 105℃ / -22 to 221℉

• Item Dimensions(L x W x H): 2.66 x 2.11 x 2.66 in / 6.76 x 5.36 x 6.76 cm

• Net Weight: ‎4.14 lbs / 1.88 kg

Package Content

• 1 x Split Charge Relay

• 4 x 1 mtr Red Battery Cable 110A

• 1 x 1 mtr Black Ground Cable 110A

• 1 x Negative Marine Battery Terminal

• 1 x Positive Marine Battery Terminal

• 2 x Fuse Holders

• 3 x Lug Connector

• 3 x Insulated Blue Ring Terminal

• 15 x Cable Ties

• 2 x 250 mm Red 110A Cable

• 2 x Shrink Tube

• 1 x Drill Bit

• 1 x Black Split Conduit

• 1 x Set of Screws

5 mtr Battery Cable Specifications

• Model: JDQTJ-5M

• Rating Voltage: 12V DC

• Continuous Current: 140A

• Intermittent Current: 160A

• Cut-in Voltage: 13.3V

• Cut-out Voltage: 12.8V

• IP Rating: IP65

• Material: Nylon Plastic

• Current Draw-Charging: 280mA

• Current Draw-Standby: 8mA

• Power Studs: M6 Stainless Steel

• Delay Time: 5 Seconds

• Disengage Delay: About 5-10 Seconds

• Operation Temperature Range: -30 to 105℃ / -22 to 221℉

• Item Dimensions(L x W x H): 2.66 x 2.11 x 2.66 in / 6.76 x 5.36 x 6.76 cm

• Net Weight: ‎4.14 lbs / 1.88 kg

Package Content

• 1 x Split Charge Relay

• 5 x 1 mtr Red Battery Cable 110A

• 1 x 1 mtr Black Ground Cable 110A

• 1 x Negative Marine Battery Terminal

• 1 x Positive Marine Battery Terminal

• 2 x Fuse Holders

• 3 x Lug Connector

• 3 x Insulated Blue Ring Terminal

• 15 x Cable Ties

• 2 x 250 mm Red 110A Cable

• 2 x Shrink Tube

• 1 x Drill Bit

• 1 x Black Split Conduit

• 1 x Set of Screws

6 mtr Battery Cable Specifications

• Model: JDQTJ-6M

• Rating Voltage: 12V DC

• Continuous Current: 140A

• Intermittent Current: 160A

• Cut-in Voltage: 13.3V

• Cut-out Voltage: 12.8V

• IP Rating: IP65

• Material: Nylon Plastic

• Current Draw-Charging: 280mA

• Current Draw-Standby: 8mA

• Power Studs: M6 Stainless Steel

• Delay Time: 5 Seconds

• Disengage Delay: About 5-10 Seconds

• Operation Temperature Range: -30 to 105℃ / -22 to 221℉

• Item Dimensions(L x W x H): 2.66 x 2.11 x 2.66 in / 6.76 x 5.36 x 6.76 cm

• Net Weight: ‎4.14 lbs / 1.88 kg

Package Content

• 1 x Split Charge Relay

• 6 x 1 mtr Red Battery Cable 110A

• 1 x 1 mtr Black Ground Cable 110A

• 1 x Negative Marine Battery Terminal

• 1 x Positive Marine Battery Terminal

• 2 x Fuse Holders

• 3 x Lug Connector

• 3 x Insulated Blue Ring Terminal

• 15 x Cable Ties

• 2 x 250 mm Red 110A Cable

• 2 x Shrink Tube

• 1 x Drill Bit

• 1 x Black Split Conduit

• 1 x Set of Screws



Features & Details

• 【Dual Battery Isolator】: The smart battery isolator cuts in at 13.3 volts and cuts out at 12.8 volts to ensure your primary battery is always charged and ready to start your vehicle. It can charge two batteries simultaneously and isolate them from each other when the vehicle is turned off. Note: This product is not suitable for lithium batteries.

• 【Easy to Install】: This split charge relay kit comes with complete accessories, allowing you to start installing directly without purchasing additional components. Besides, we have detailed instructions for you to complete the installation easily and flawlessly.

• 【Rugged & Durable】: Split charge relay is made of a premium plastic material, which is shockproof and dustproof, ensuring maximum strength and durability for long-lasting usage. You will always be prepared and confident to take on any challenge.

• 【Superb IP65 Waterproof】: Voltage sensitive relay is waterproof up to IP65, which means that your isolator is secure for use even in dusty, wet, and unexpected extreme weather environments. Great for extreme vibration applications as well.

• 【Fit Various Vehicles】: This isolator kit 12v has a compact size of 2.66" x 2.11" x 2.66", suitable for almost anywhere. Mainly used in off-road vehicles, camper vans, RVs, caravans, 4x4s, leisure vehicles, ships, yachts, marine applications, etc.
